Kiosk design

Gold Teller Machine

Client: Rupeek
Year: 2021
Role: Industrial designer, consultant
Status: Prototype

The Rupeek Gold Teller Machine — a black desk-height kiosk with an angled touchscreen and a gold tray

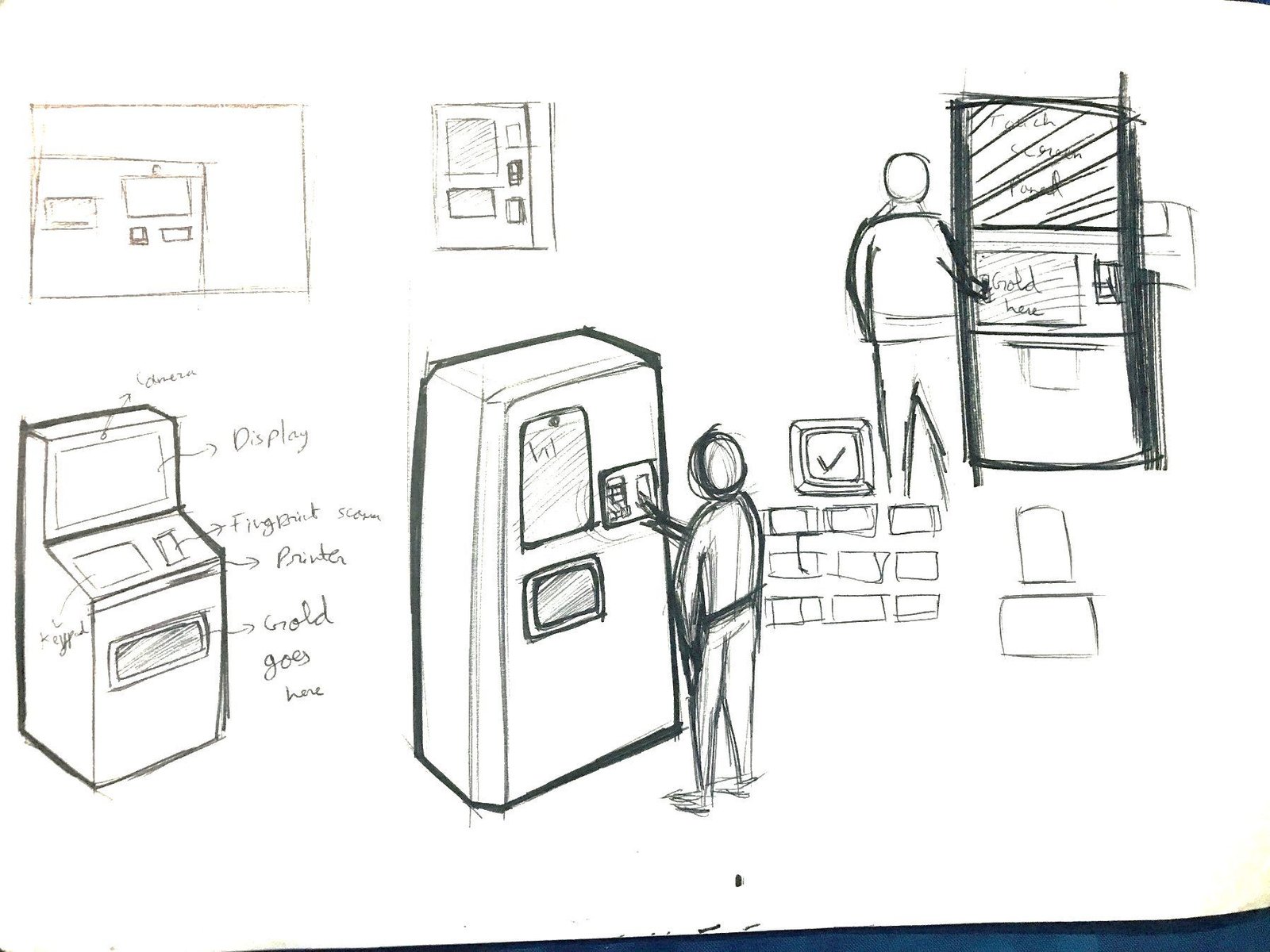

Early sketches of a standing kiosk with a person interacting, and a wall-mounted variant

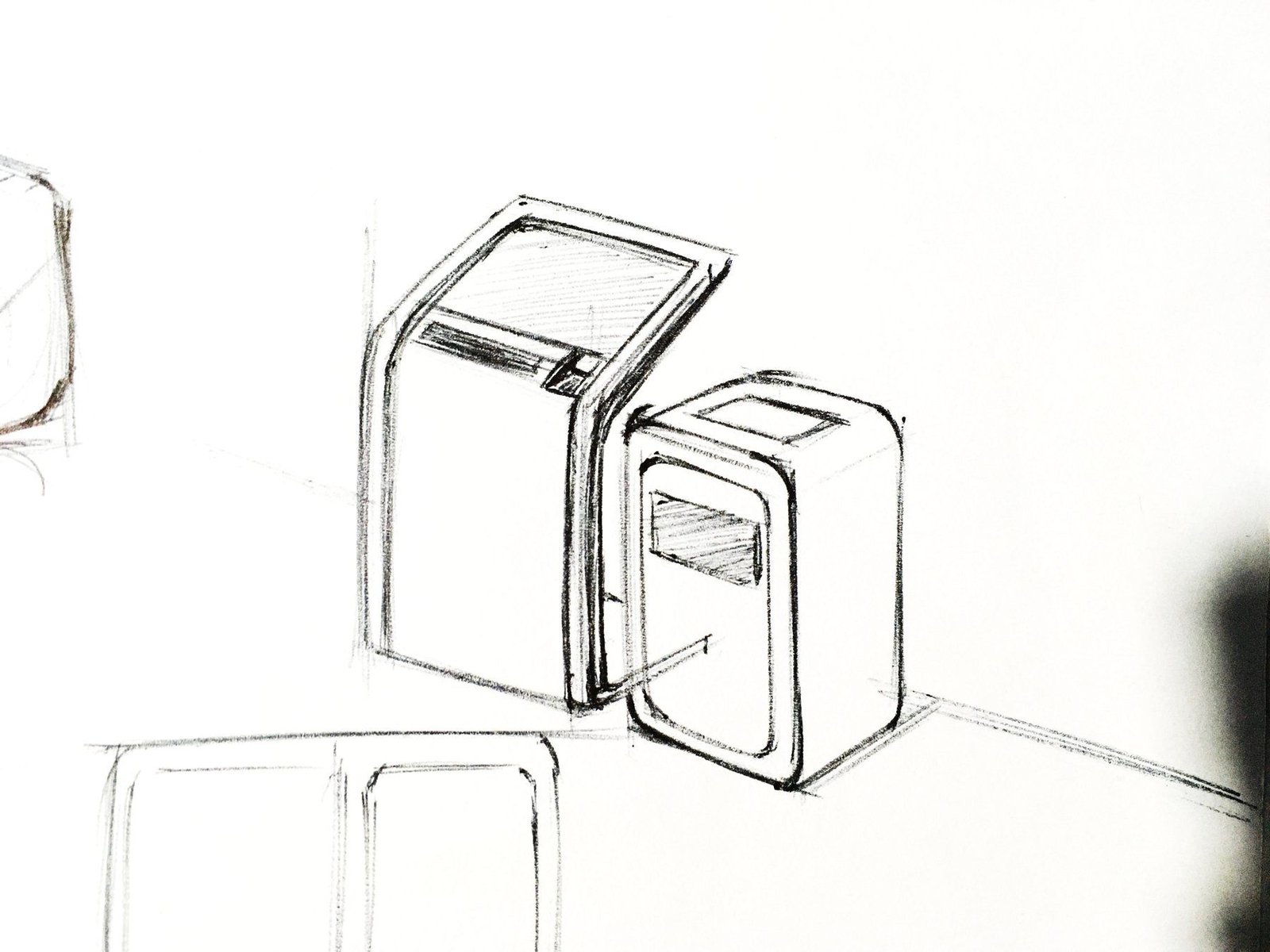

Loose sketch of two boxy kiosk volumes

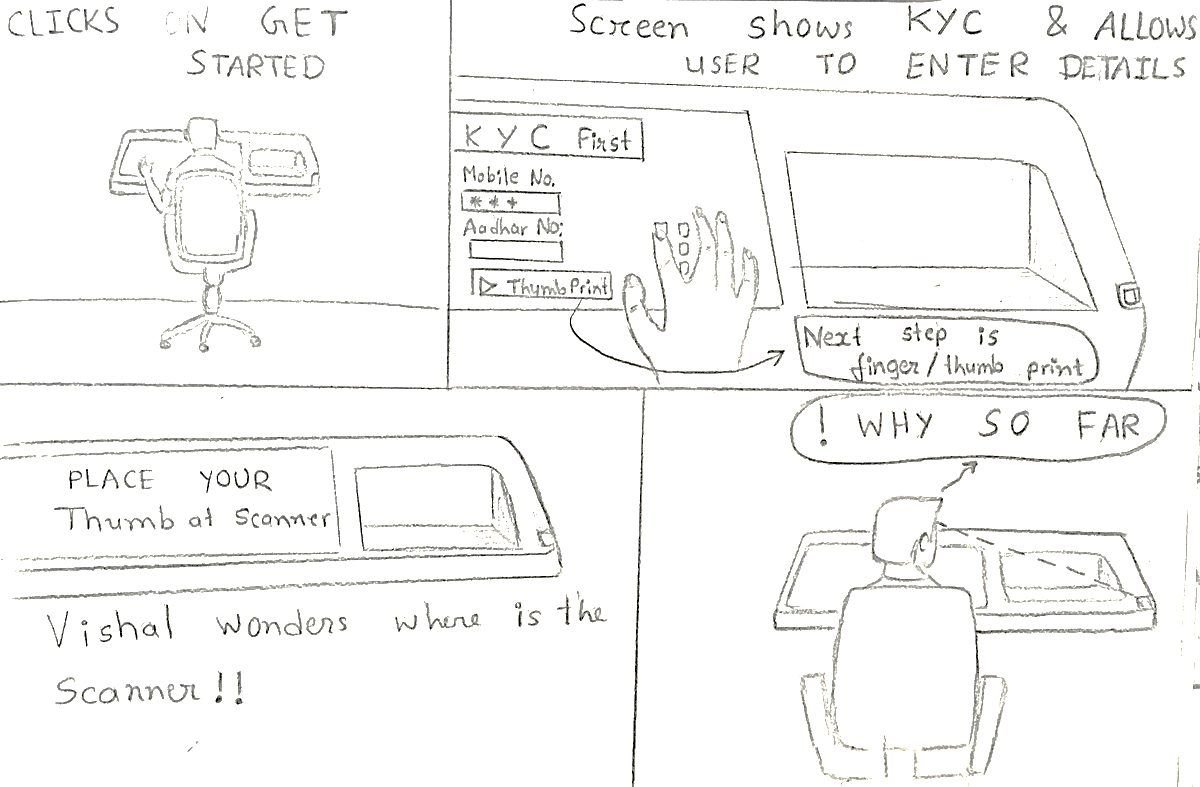

Hand-drawn storyboard of the user flow: clicking get started, the screen showing KYC, placing a thumb for a scan, and a visual window showing where the scanner is

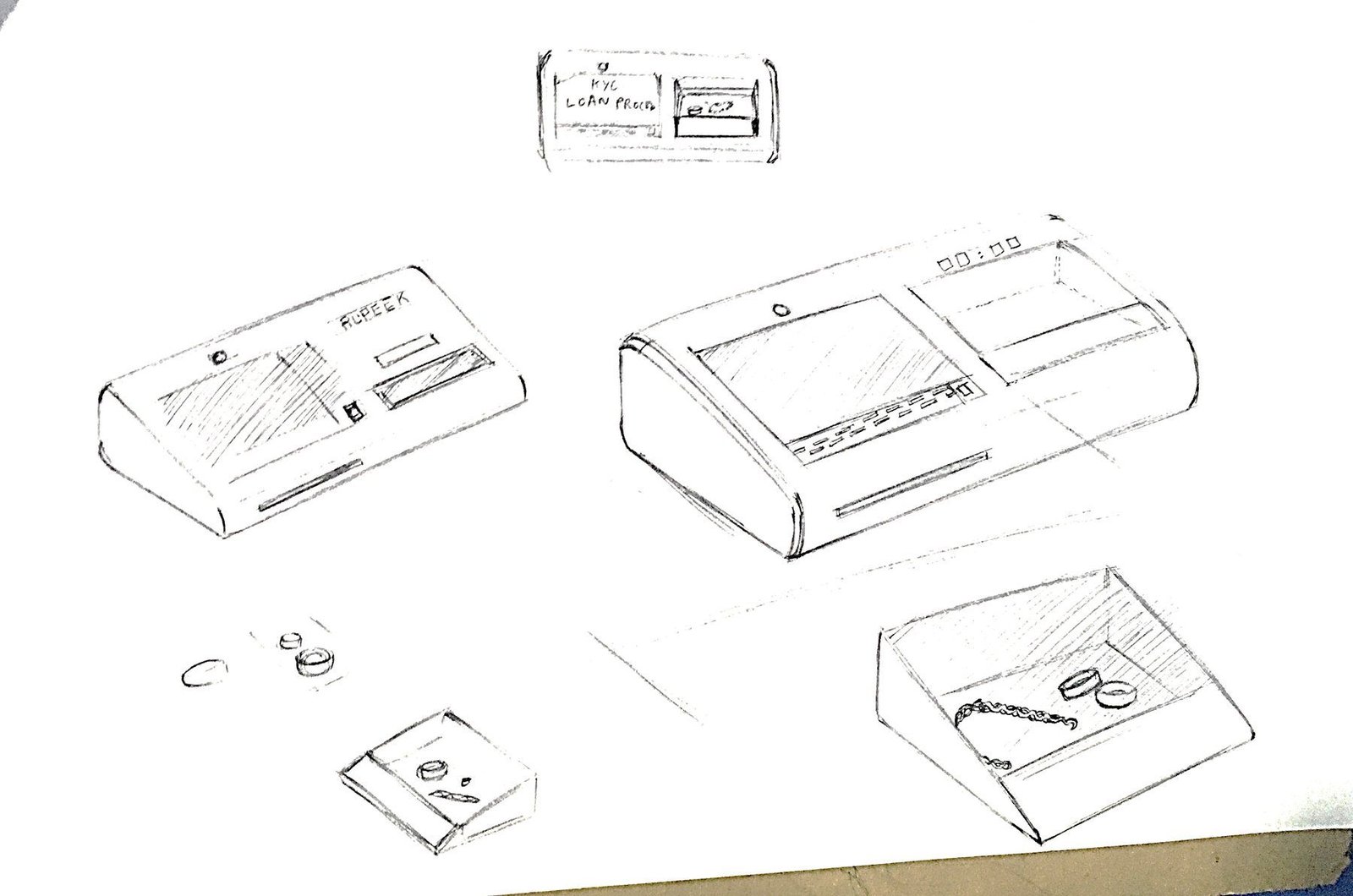

Pen sketches of the desk-height kiosk from several angles

Sketch of a standing counter-height kiosk with a screen and gold tray

A person using a wall-mounted passbook printer

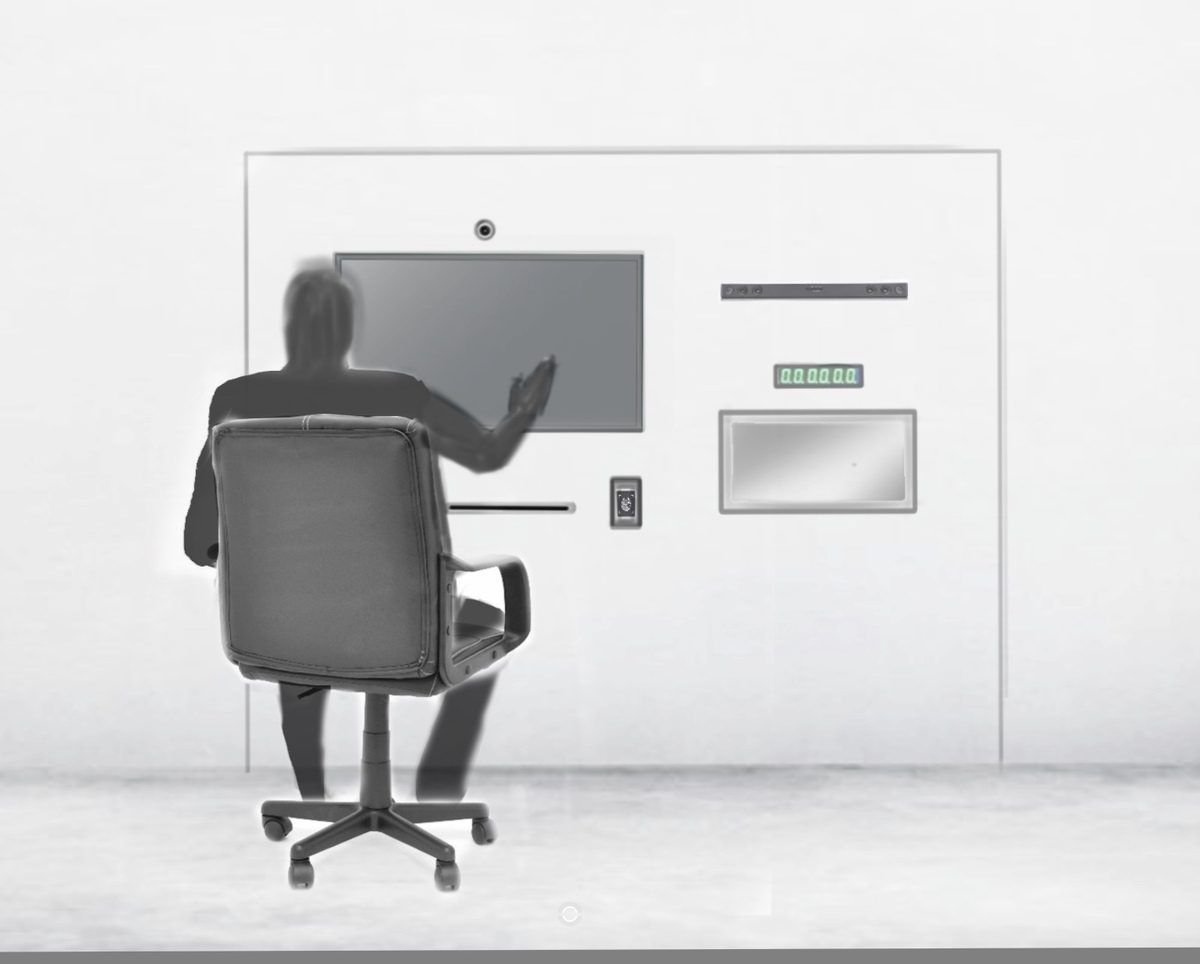

Render of a person seated at a wall with a screen, a slot and a small tray built into it

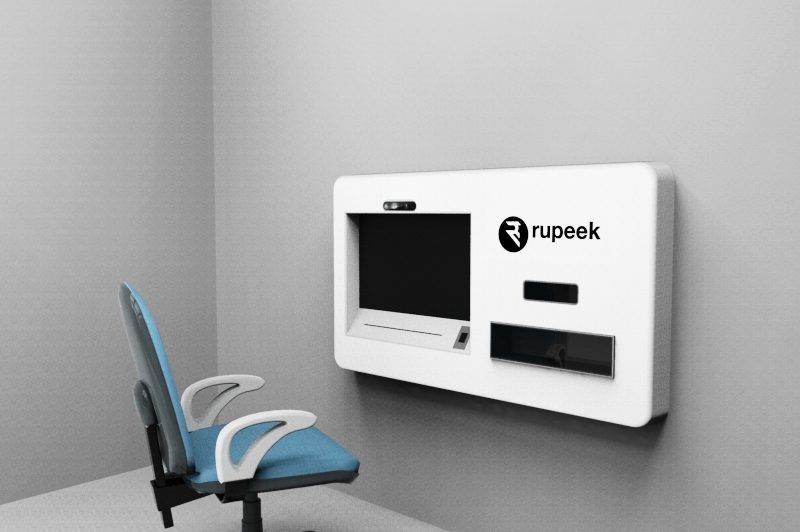

Render of a white wall-mounted Rupeek unit with a chair in front

Silhouette of a person using a desk-height kiosk shaped like a gold biscuit

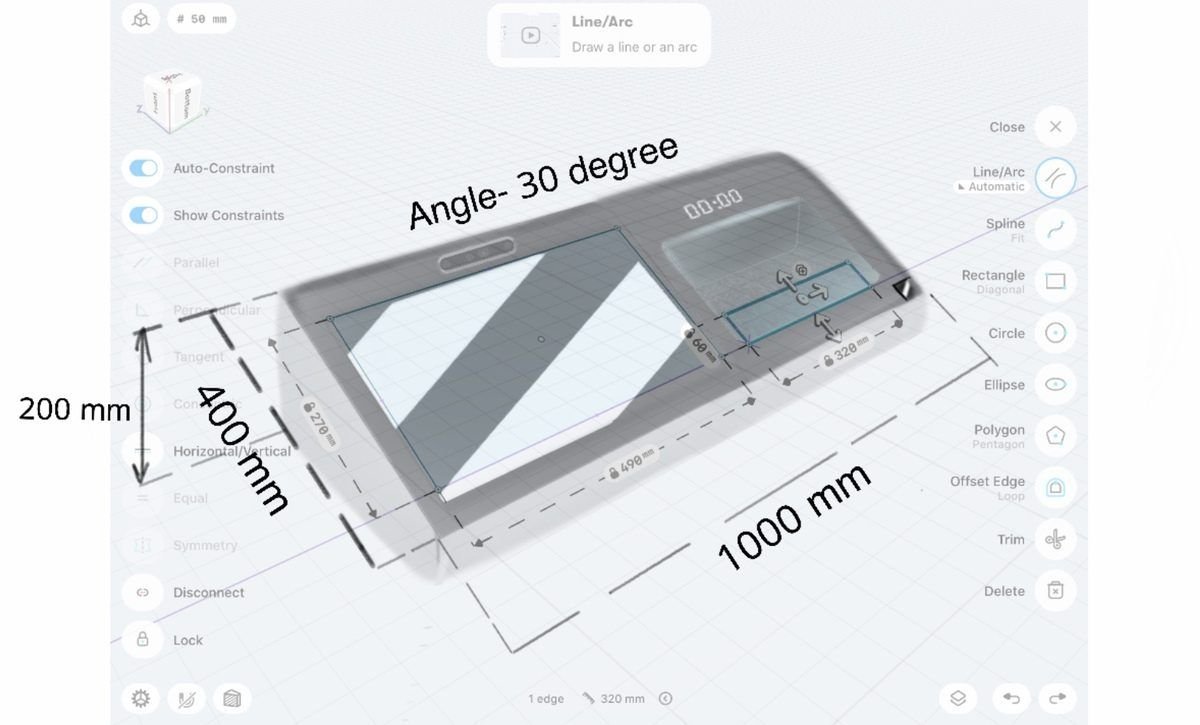

CAD drawing of the kiosk top at a 30-degree angle, 400 by 1000 millimetres, with a 200 millimetre tray

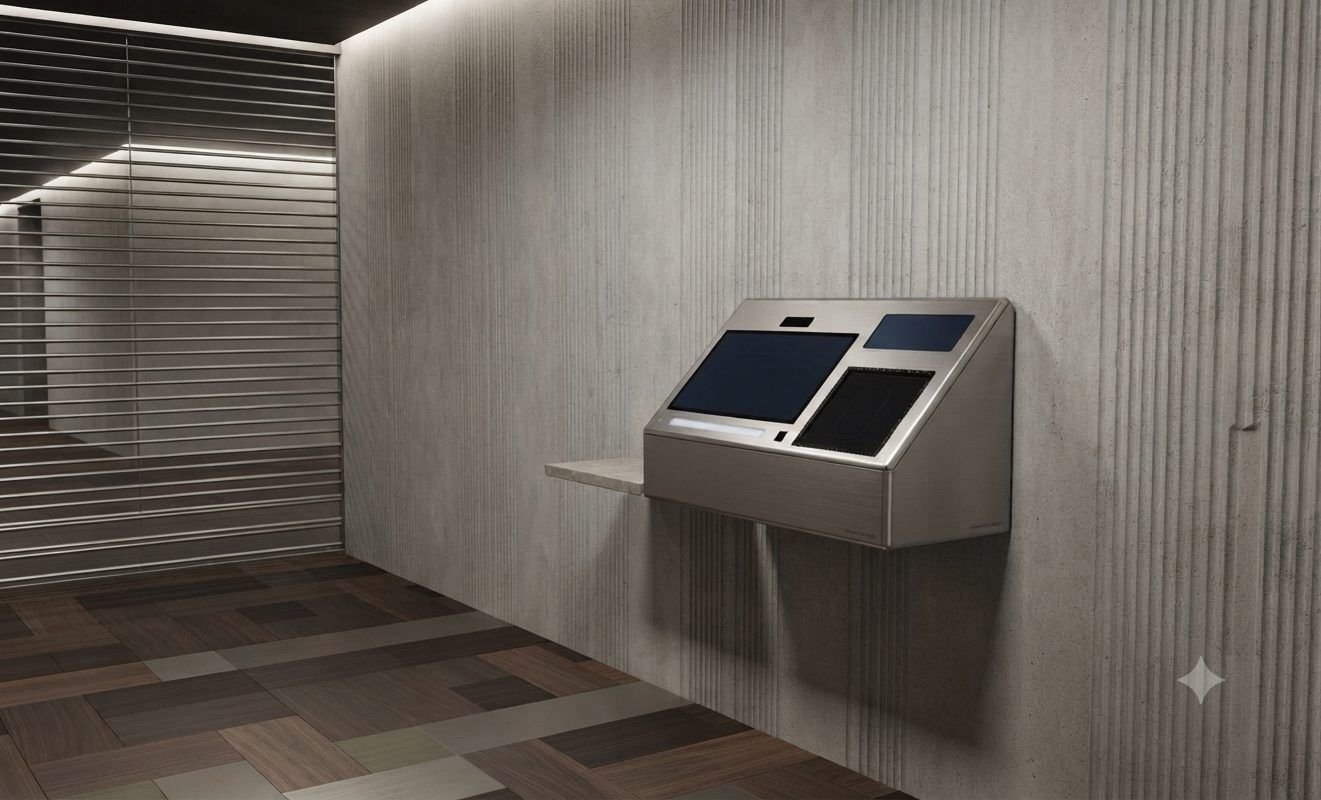

Steel prototype of the Gold Teller Machine mounted on a slatted wooden wall

A person seated at the wall-mounted kiosk prototype, reaching for the tray

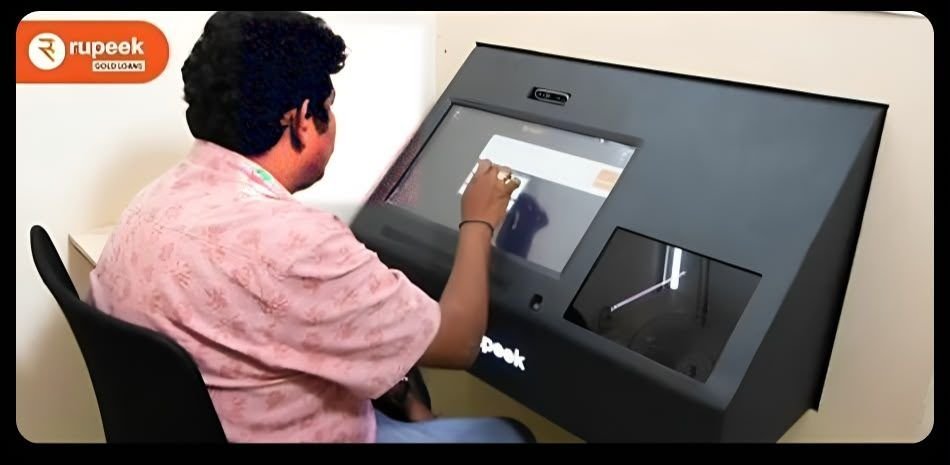

A person at the black kiosk prototype, touching the screen
